DormakabaTS92B EN1-4 Cam Action, Pull Side w/ Arm

DormakabaTS92B EN1-4 Cam Action, Pull Side w/ Arm

DormakabaTS92B EN1-4 Cam Action, Pull Side w/ Arm The dormakaba TS92B closer is non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design). With adjustable closing speed of 180° – 15° and a latching action independently adjustable with a closing action of 15° – 0° with two…

Original price was: $596.13.Current price is: $89.42.
Checkout
Category:

Description

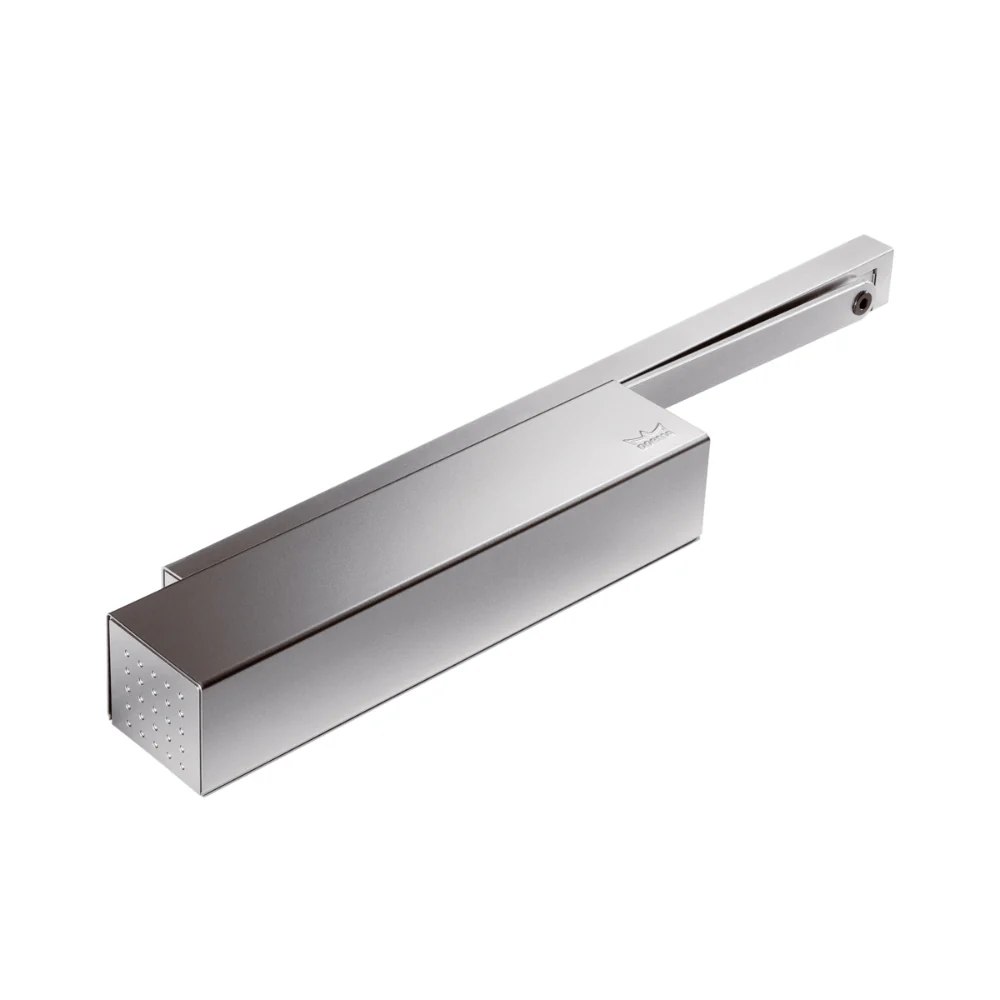

DormakabaTS92B EN1-4 Cam Action, Pull Side w/ Arm

The dormakaba TS92B closer is non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design). With adjustable closing speed of 180° – 15° and a latching action independently adjustable with a closing action of 15° – 0° with two separate vales.

Variable Closign Force:EN1-EN4

Standard model for pull-side door leaf fixing/push-side transom fixing.

Suitable for fire and smoke check doors where the cushioned limit stay is also used.

Suitable for installation on doors up to 1100mm (W).

Specifications:

  • Length: 281mm
  • Width: 47mm
  • Height: 65mm
  • Closing force Adjustable Size: EN 1-4
  • Standard doors: up to 1100mm
  • External doors, outward opening: No
  • For fire and smoke check doors: Yes
  • Non-handed design: Yes
  • Arm assembly type: Slide channel
  • Closing speed and latching action independently adjustable at two separate valves:
      180 degrees to 15 degreess

        15 degrees to 0 degreess

      • Without Backchecks
      • Without Delayed actions
      • Weight: 2.0 kgs

    • Reviews

    There are no reviews yet.

    Be the first to review “DormakabaTS92B EN1-4 Cam Action, Pull Side w/ Arm”

    Your email address will not be published. Required fields are marked *

    Related products

    • Product on sale

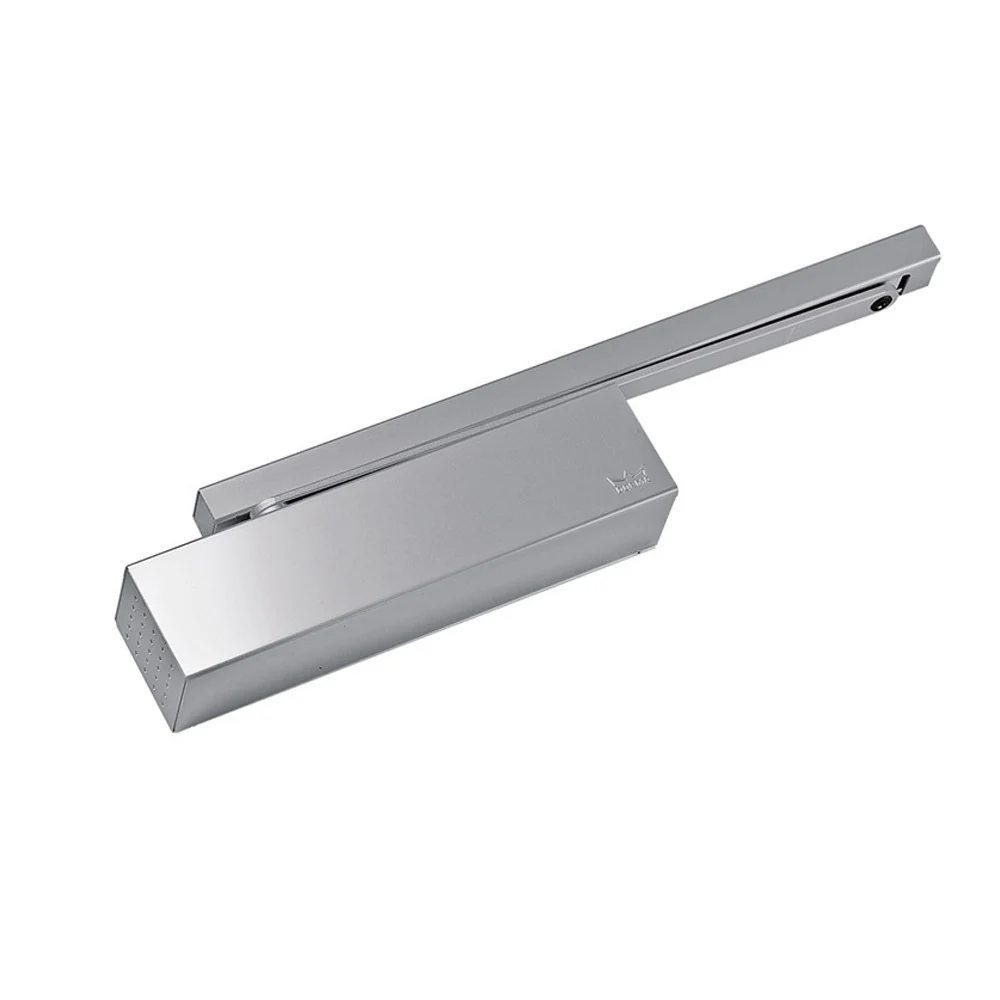

      Dormakaba TS93G EN1-EN5 Cam Action, Push Side w/ARM
