Description
JONARD TOOLS | PART #JH21-100
1 5/16 inch Standard J Hook, Size 21, Pack of 100
DESCRIPTION

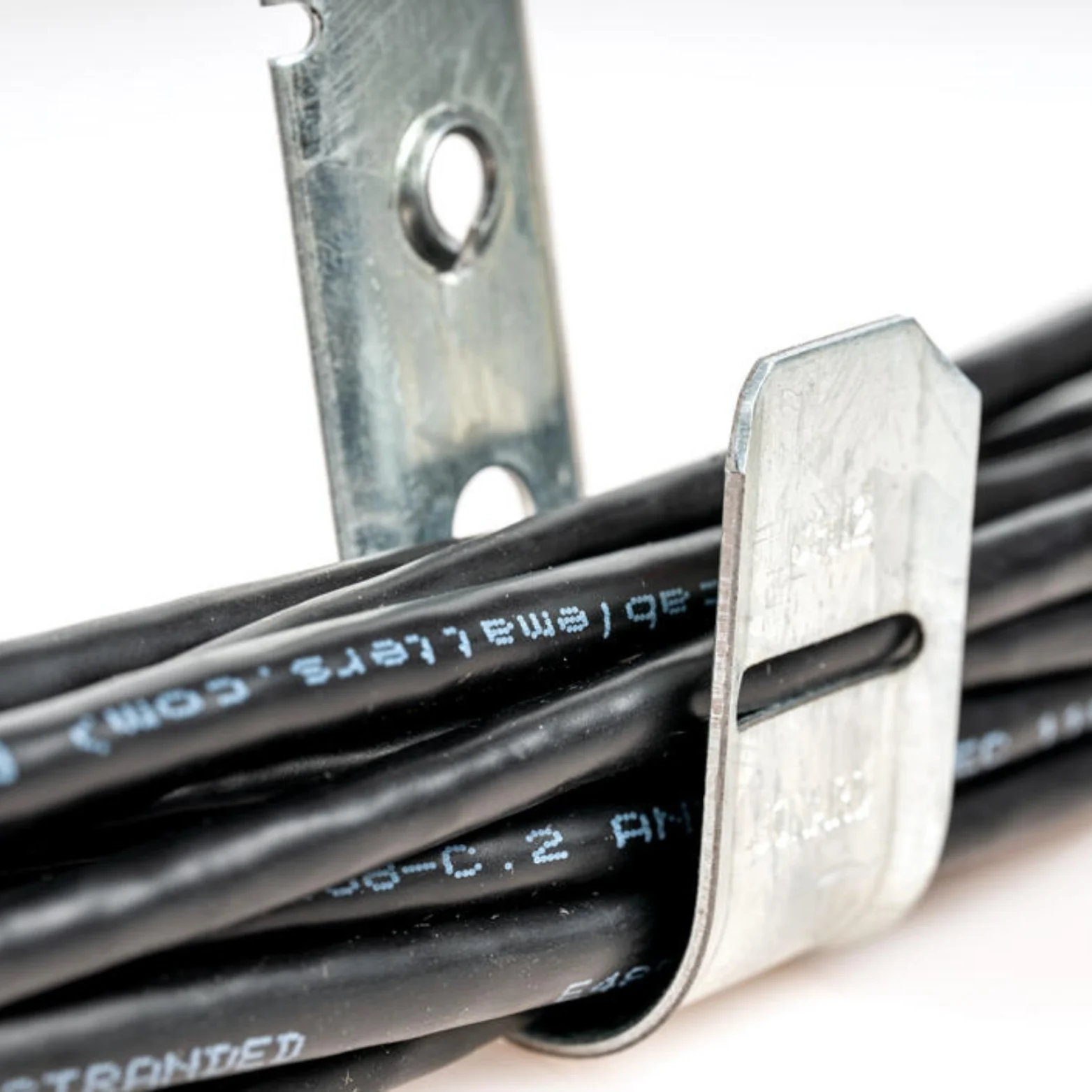

Designed for heavy-duty hanging applications, these J hooks provide stress-free cable support while keeping your cable bundles neat and organized. These J hooks also feature the following.
- Size 21 for cable bundles up to 1 5/16″ in diameter, and a maximum load capacity of 60 lb (27.2 kg)
- Max number of 4 pair UTP CAT5E cables it can hold: 50
- Max number of 6 pair UTP CAT5E/CAT6 cables it can hold: 32
- Retainer clip for securing cables
- UL® listed and complies with NEC® and TIA requirements for structured cabling systems
Hook Size: 1 5/16″ (Size 21)
DOCUMENTS
JH21-100 Standard J Hook Datasheet
SPECIFICATIONS
| Size |
JH21, 1 5/16″ (3.33 cm) |
|---|---|
| Capacity |
60 lb (27.2 kg) |
| Mounting Hole Diameter |
9/32″ (0.71 cm) |
| Dimensions | 4.4 in x 1.85 in x 1.38 in (11.18 cm x 4.7 cm x 3.51 cm) |
| Weight | 0.13 lb (59.928 g) |
| UPC # | 810053359884 |
Common Questions About the 1 5/16 inch Standard J Hook, Size 21
What is the Jonard Tools JH21-100 used for?
The Jonard Tools JH21-100 is used to support and organize medium size cable bundles in structured cabling installations while maintaining proper spacing and load limits.
Who is this J hook designed for?
These J hooks are designed for electricians and low voltage installers working in commercial and residential cabling environments.
What makes the JH21-100 different from standard cable supports?
The JH21-100 features a built in retainer clip, a 60 lb load capacity, and compliance with NEC and TIA standards to provide secure and code compliant cable support.
At a Glance
• 1 5/16 inch J hook for cable bundles up to Size 21
• 60 lb load capacity for structured cabling support
• Integrated retainer clip for secure cable management
• UL listed and compliant with NEC and TIA standards
