Description
SMG TRAILERS | PART #FST-6X10

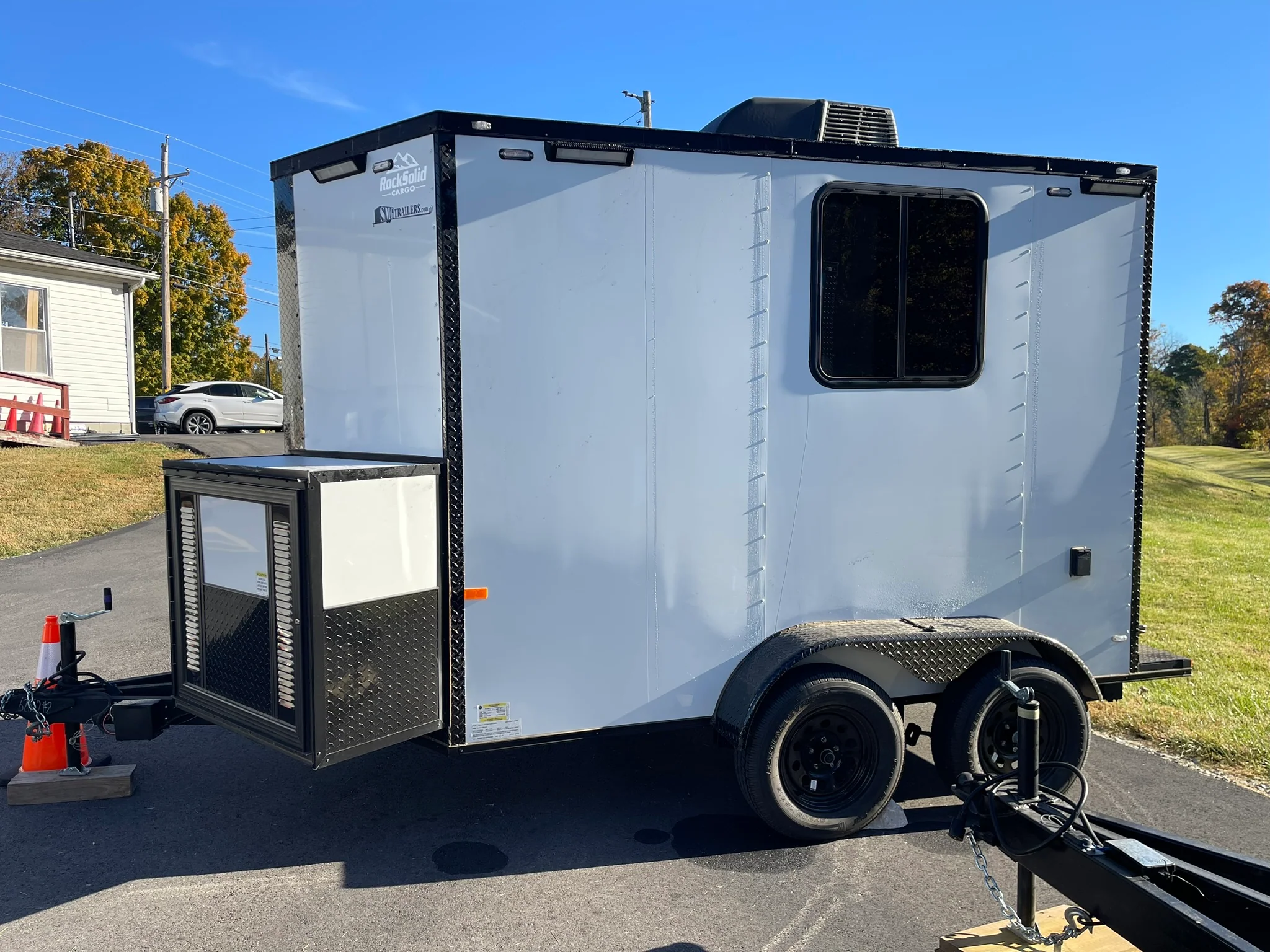

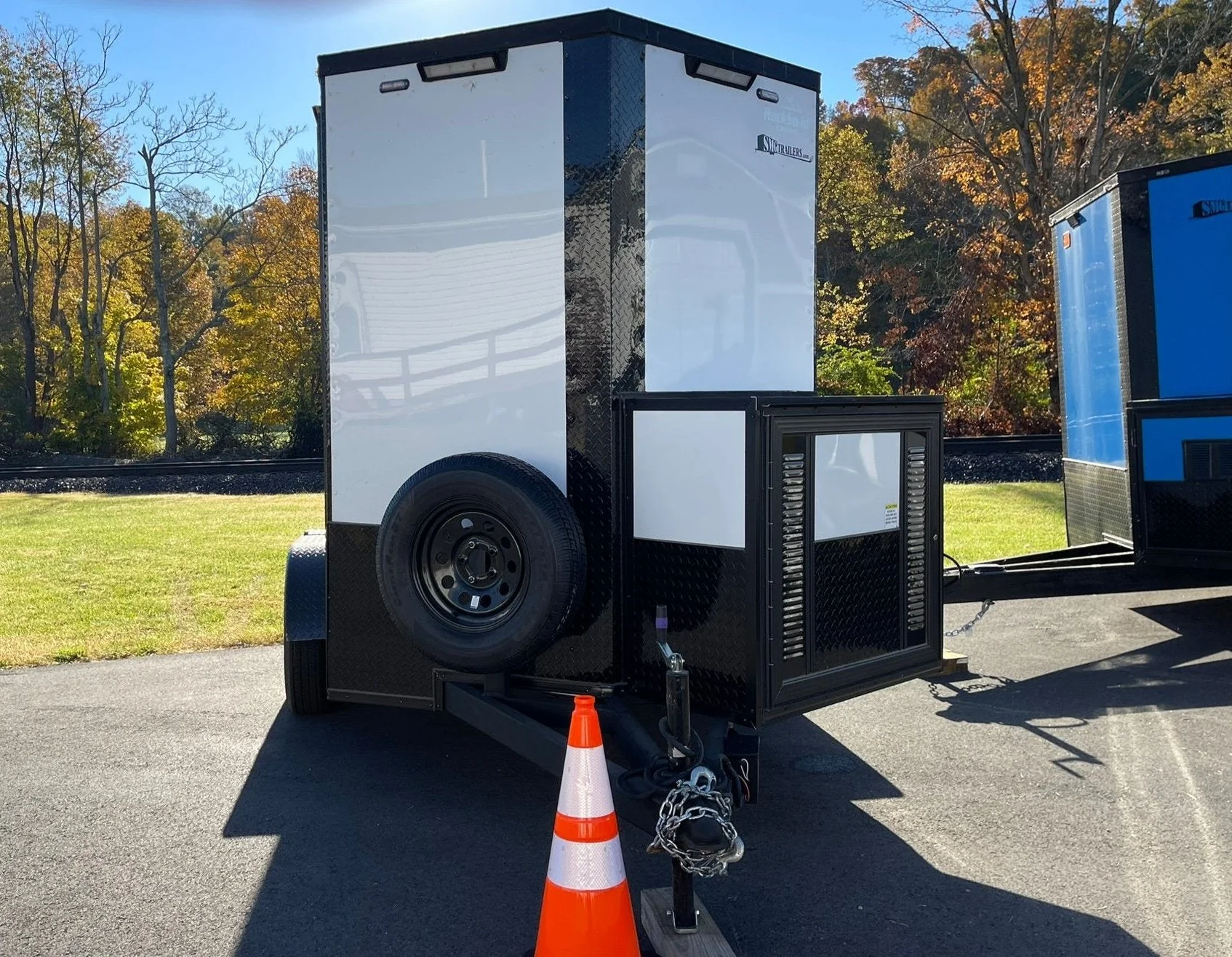

SMG Fiber Splicing Trailer, 6′ x 10′ V-Nose
Upgrade your fiber splicing with the SMG 6X10 Fiber Splicing Trailer! These rugged trailers feature a durable frame, 13.5 BTU AC/Heat unit, and a well-designed interior with LED lighting and USB-C outlets.
PICKUP NOTICE
The customer is ultimately responsible for ensuring that the trailer is hooked up to their vehicle correctly.
IMPORTANT NOTICE: REQUIRES A CUSTOM QUOTE
Due to varying options and add-ons, fiber splicing trailers cannot be purchased directly through our online store. For a customized quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: [email protected]
When emailing, please provide the following details for quicker processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Trailer Size:
*Price starts at $22,677.00
**Prices Subject to Change
DESCRIPTION
These trailers offer mobile, efficient, and safe workspaces for on-site splicing operations. Built for durability with a robust frame and equipped with a 13.5 BTU AC/Heat unit, it ensures comfort in any weather. The spacious interior features insulated walls, ample storage, bright LED lighting, and multiple electrical outlets with USB and USB-C, providing everything you need for efficient work. Customize your trailer with a range of add-ons to fit your specific needs, including recessed D-rings, blackout packages, fold-down stabilizer jacks, Bluetooth radios, updated wheels, heavy-duty axles, E-track, spare tires, CO2 detectors, fire extinguishers, electric heaters, pull-out steps, and screen doors.
STANDARD SPECIFICATIONS
- 6′ x 10′ V-Nose
- 3,500 lb STRAIGHT Tandem Axles, 15″ Tires
- 84″ (7′) Interior Height
- 12″ Rear Step Well (built into the frame)
- Recessed Strobe Lights Around the Exterior
-
(2) 15 “x 30” Windows (Passenger Side and Driver Side)
- Spare Tire Mounted on the passenger side
- SOLID Generator Box mounted on the driver’s side
- Emergency Directional Bar on Rear
- Powerful 13.5 BTU AC/ Heat strip (low heat output)
- 2 Fiber Entry Doors – 16″ x 18″, located at the rear and passenger side
-
1 Standard Entry Door – located at the rear (15″x30″ window/screen)
- Latched Overhead Cabinets in the V-Nose
- Latched Cabinets Under the Counter in the V-Nose
- (4) Latched & Lockable Finished Drawers
- CO2 Detector, Kidde/AID BC Fire Extinguisher
-
3 YEAR LIMITED WARRANTY
** There may be slight variations between the photos shown on our website and the finished trailer.**
MOST POPULAR AVAILABLE ADD-ONS FOR SPLICING TRAILERS:
- Fold-Down Stabilizer Jacks
- Jenson Bluetooth Radios with 2 Speakers
- E-Track
- Mounted or Recessed Spare Tire
- Commercial NPS 6000 Generator with Remote Start and 20-Gallon Fuel Cell
- Electric Baseboard Heater with Thermostat (36″ or 48″) Recommended for mid to northern states
- TV-Style Pull-Out Step
Common Questions About the SMG Trailers FST-6X10 Fiber Splicing Trailer
What is the FST-6X10 Fiber Splicing Trailer used for?
The FST-6X10 Fiber Splicing Trailer is used as a mobile workspace for fiber optic splicing, testing, and network construction on telecommunications and utility job sites.
Who uses a 6×10 fiber splicing trailer like this?
This trailer is used by fiber splicing crews, telecommunications contractors, and utility teams that need a compact, maneuverable, and fully equipped trailer for daily splicing operations.
What makes the FST-6X10 different from other compact fiber trailers?
This model combines a 6×10 V-nose layout with straight tandem axles for added ground clearance, multiple fiber entry doors, a solid generator box, climate control, and organized cabinetry, delivering professional capability in a smaller footprint.
How the FST-6X10 Supports Efficient Fiber Splicing Operations
The FST-6X10 Fiber Splicing Trailer supports efficient field workflows by providing a bright, insulated, and climate controlled interior with dedicated fiber entry points and splicing access. Built in storage, lockable drawers, safety equipment, and generator readiness help crews stay organized and productive across varied jobsite conditions.
At a Glance
• 6 x 10 enclosed V nose fiber splicing trailer
• Straight tandem axles for increased ground clearance
• Climate controlled interior with 13.5 BTU AC and heat strip
• Multiple fiber entry doors for flexible splicing access
• Organized cabinetry with lockable storage and safety equipment
• Designed for professional fiber splicing and field operations
